How to Convert an Acoustic Drum to Electronic – Mesh Heads & Trigger Plates
Share
To convert an acoustic drum to electronic, combine a correctly sized mesh head, a compatible trigger or trigger plate, the required cable and a drum module or trigger interface. The mesh head reduces acoustic playing volume; the trigger detects the hit; the module produces the sound. A mesh head by itself does not make a drum electronic. Start with one drum, verify its response, then expand the setup.
What you need for an acoustic-to-electronic conversion
| Component | Its job | Check before buying |
|---|---|---|
| Mesh drum head | Provides a quieter playing surface | Diameter, hoop fit and desired rebound |
| Trigger plate or acoustic drum trigger | Detects strikes and sends trigger signals | Shell fit, mounting method and supported head/rim zones |
| Cable and output connection | Connects the trigger to the module | Required connector and wiring; do not assume every stereo input works the same way |
| Module or trigger interface | Interprets hits; a module supplies sounds, while an interface needs a suitable sound source | Available inputs, trigger compatibility and zone support |
| Headphones or amplification | Lets you hear the electronic sound | Outputs and monitoring appropriate to your setup |
Choose the head and trigger together
Mesh head size and feel
The Phantom mesh drum head range includes 3-ply heads in black and white, from 8 to 20 inches. Match the head to the drum’s nominal size and check hoop fit. For a 12-inch drum, compare the 12-inch black mesh head and 12-inch white mesh head. Three mesh layers provide rebound and durability, but the head is separate from the trigger electronics.
Internal trigger plates
The 12-inch dual-zone trigger plate with six trigger points is a starting point for a compatible 12-inch shell conversion. Six trigger points do not mean six independently assignable zones: the product is specified as dual-zone. Check mounting clearance, the output arrangement and your module’s head/rim support before buying. Read the Phantom trigger plate guide and the product’s instructions for its installation method.
Other trigger approaches

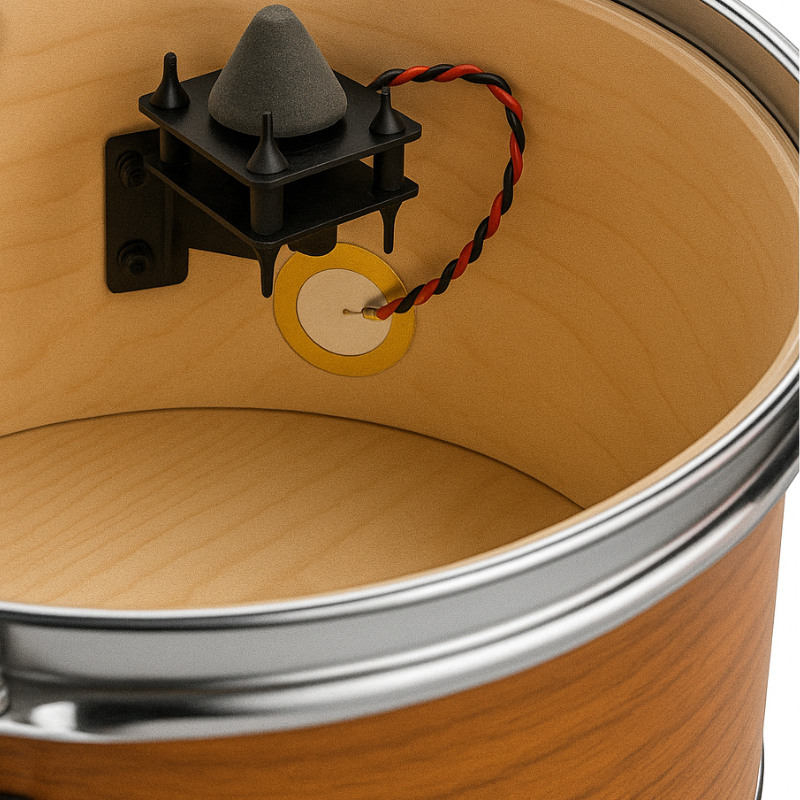

An adjustable-cone dual-zone acoustic drum trigger provides another approach to head/rim triggering. For kick drums, the 20-inch bass drum mesh head with built-in trigger combines the head and sensor, with internal foam protection. Its listing supports double pedals and states that the pedal and module are not included. These are different products with different fitting requirements, not interchangeable mounting systems.
Convert one drum step by step
- Plan the signal path. Identify your module, an available input and the zones it supports. Confirm the trigger’s compatibility rather than relying on a module brand name.
- Check physical fit. Match head and trigger dimensions to the shell. Inspect clearance around internal hardware and the required cable exit or output mounting.
- Install the trigger using its instructions. Follow the specified support, sensor contact and foam arrangement. Do not use a generic cone height or assume every conversion is drill-free.
- Fit and tension the mesh head evenly. Follow the head and trigger instructions. Recheck contact and response after changing tension.
- Connect and configure. Use the specified cable, choose the recommended trigger type and test head and rim independently where supported.
- Test real playing dynamics. Play soft notes, accents and repeated strokes across the head. Then strike adjacent drums to check for unwanted triggering. Adjust one parameter at a time.
Common conversion problems
If soft notes disappear, first check sensor contact and cabling before raising sensitivity. If one strike produces repeated notes, inspect mounting and head tension, then use the module’s retrigger controls as instructed. If another drum triggers, check mechanical vibration and crosstalk settings. Excessive filtering can hide intentional fast notes, so retest after every adjustment. Our trigger troubleshooting guide gives further help.
Frequently asked questions
Will mesh heads make my kit silent?
No. They reduce acoustic volume, but stick impact, pedals and transmitted vibration remain. Headphones control the electronic sound, not the physical noise of playing.
Can I plug a trigger straight into a computer?
An analog trigger needs a compatible module or trigger interface to interpret its signal. A connector adapter alone does not perform that job.
Can I keep my acoustic cymbals?
Yes, for a hybrid setup, but they retain their acoustic volume. For quieter electronic playing, compare electronic cymbals or a separately planned cymbal conversion. Hi-hat control and three-zone ride wiring need their own compatibility checks.
Must I convert the whole kit at once?
No. Converting one drum first lets you check fit, feel and module response before repeating the approach on the rest of the kit.
Build your parts list
Compare the Drum Triggers collection with your chosen mesh heads, then consult the installation guides. If fit or module support is unclear, send World Drummers your drum size and exact module model before ordering.
