A 3-zone electronic ride works fully only when the cymbal, wiring and module input support separate bow, edge and bell signals. “Three-zone” describes playing areas, not a universal cable standard. The standard Phantom 15-, 17- and 20-inch triple-zone rides specify dual TRS connections. Do not assume a one-cable ride or a spare crash input is interchangeable with that arrangement.

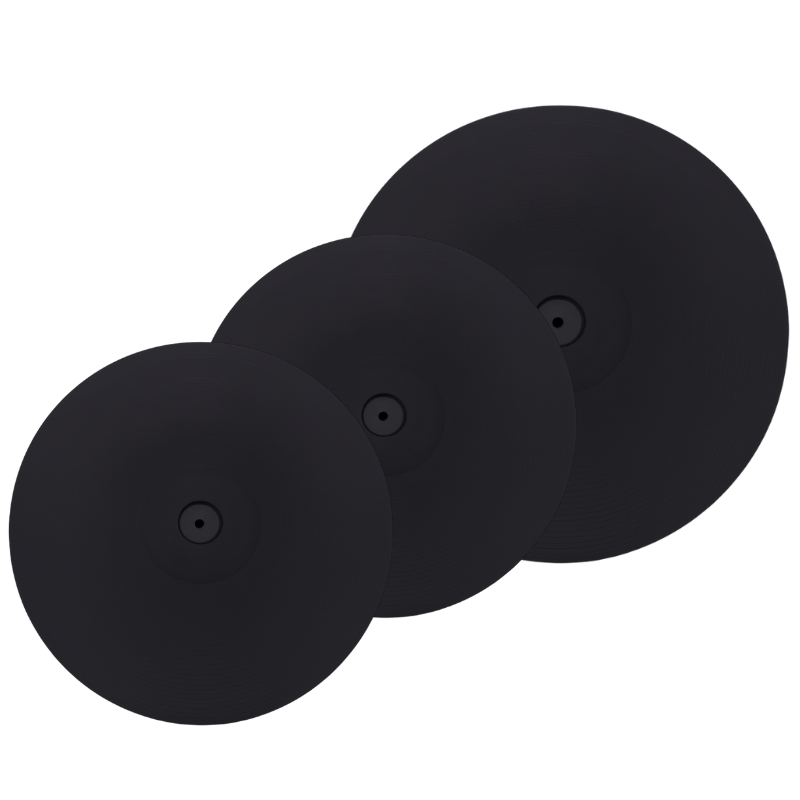

Single, dual and triple zones explained
| Cymbal type | Playing areas | What it does not guarantee |
|---|---|---|
| Single-zone | One triggered area | Separate edge or bell sounds |
| Dual-zone bow/edge | Bow and edge | An independent bell, even if a ride sound is assigned |
| Triple-zone ride | Bow, edge and bell | All three zones through any cable or module input |
Choke is a separate function to verify. Likewise, three playing zones do not establish positional sensing or the touch response of a digital cymbal. Choose by the articulations you need, rather than treating zone count as a measure of playing ability.
One cable, two cables and digital connections
Two-cable analog rides
The 15-inch, 17-inch and 20-inch Phantom triple-zone rides list dual TRS connections and independent bow, edge and bell zones. Their product compatibility information lists Roland TD-17 and TD-27 three-zone support. Use the required ride/bell connections and follow the cymbal’s output labels.
One-cable rides
If a ride is advertised as carrying three zones through one cable, verify that exact cymbal against the module’s supported trigger system. The same TRS plug shape is not proof of the same signal arrangement. This guide does not certify an unlisted one-cable ride for a Roland two-cable configuration, or a two-cable Phantom ride for a different one-cable system.
Digital rides
A digital ride uses its supported digital connection, not the analog TRS route. On TD-27, a digital pad assigned to a trigger input prevents an analog pad on that same assignment from sounding. Check this before trying to reuse analog RIDE leads alongside a digital ride. Roland explains the assignment limitation here.
Module checks before buying
- TD-17: Roland documents RD to BOW/EDGE and RDB to BELL for its CY-13R. This verifies the module’s two-connection ride setup, not an exact pad preset for every third-party cymbal. See the official setup reference.
- TD-27: check analog ride connections and existing digital assignments before selecting the ride.
- Alesis, Yamaha or another module: check the exact model, supported ride wiring and product compatibility notes. Do not infer full bell support from a generic brand list or from the bow producing sound.
Choosing a ride size and model
The standard Phantom range offers 15-, 17- and 20-inch playing diameters. The Graphite 16-inch triple-zone ride is another option, but its current series-level compatibility information does not specify the exact wiring for every module. Confirm its cable arrangement before purchase. Browse the Electronic Cymbals collection to compare physical size and available models.
If the bell or edge does not trigger
- Check output labels, fully seated plugs and the specified cable type.
- Confirm the input supports the intended zones and is not disabled by a digital assignment.
- Select the recommended trigger type before adjusting sensitivity.
- Test each zone individually, then choke and repeated strokes. Change one setting at a time.
For a DIY build, separate sensors and the correct circuit arrangement also matter. Explore the 360° ride bell trigger and cymbal conversion components; adding a bell sensor alone does not establish module compatibility.
Frequently asked questions
Will a splitter create a third zone?
Do not assume so. A splitter does not add a sensor or establish the signal format the module needs.
Can I use a triple-zone ride with fewer zones?
Possibly, but the available zones depend on the specific cymbal and connection. Confirm the supported reduced-function setup rather than assuming which zones remain.
Why can I hear the bow but not the bell?
A working bow confirms only part of the signal path. Check bell wiring, supported input mode, pad type and any digital assignment before treating it as a sensor fault.
Cymbal technology demonstration
For module-specific connections, see our Roland TD-17 cymbal compatibility guide or Roland TD-27 cymbal compatibility guide.
