Electronic Hi-Hat Upgrades for Roland TD-17 & TD-27
Share
For a Roland TD-17 or TD-27 hi-hat upgrade, choose a cymbal and controller that work together with the module. The Phantom EVO 12-inch two-piece hi-hat and standard Phantom 12-inch silicone two-piece hi-hat list support for both modules in their World Drummers product information. That does not make every two-piece hi-hat interchangeable: the controller, cabling, trigger type and calibration still matter.
A hi-hat has two jobs
The playing surface detects stick hits; a dual-zone model distinguishes bow and edge. The controller tells the module how far the hi-hat is open. A cymbal can trigger a sound while its foot control is connected incorrectly or mismatched. For that reason, check stick response and pedal response separately.
TD-17 and TD-27: key differences
| Module | Verified reference | Upgrade implication |
|---|---|---|
| TD-17 | Roland lists VH-10 and VH-11 support | Use the supported analog hi-hat path and a compatible controller; do not infer VH-12/VH-13 support from another product being described as an alternative |
| TD-27 | Supports the digital VH-14D with system version 1.11 or later | The digital route is distinct from a Phantom TRS/controller setup |
| TD-27 with a digital hi-hat assigned | A digital assignment takes priority over the same analog trigger assignment | Check assignments before changing back to an analog hi-hat |
Technical references: Roland TD-17 hi-hat compatibility, TD-27/VH-14D requirements and digital/analog assignment limitations. These Roland references establish module behavior; third-party product support is based on the linked World Drummers listings.
Compare the Phantom options

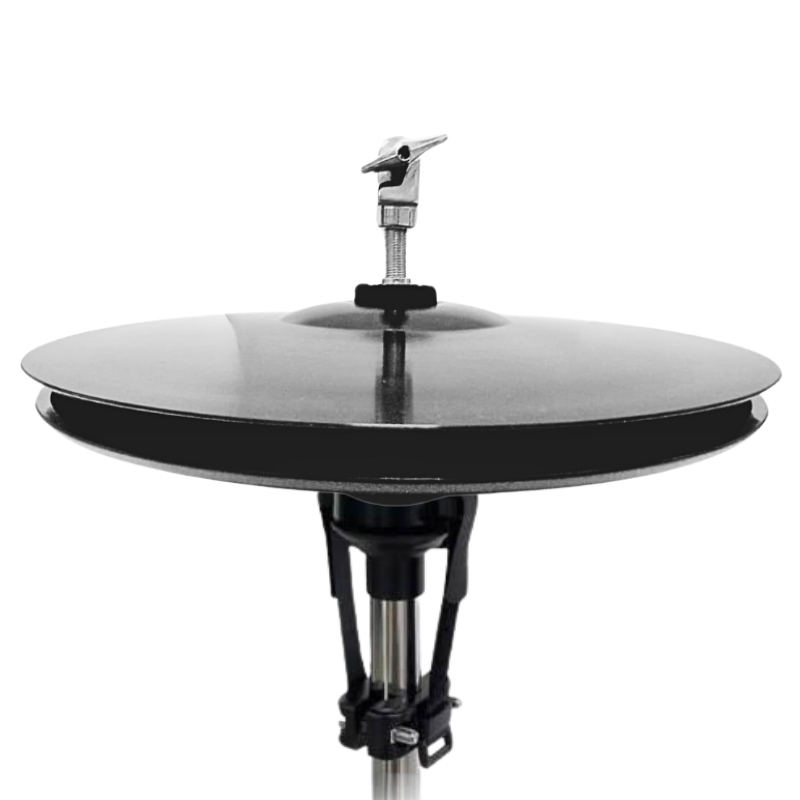

Phantom EVO 12-inch two-piece hi-hat
The Phantom EVO 12-inch hi-hat lists bow/edge zones, motion-based open/close detection and standard hi-hat stand mounting. Its package includes the top cymbal, bottom controller plate, clutch, connection cable, rotation stopper and setup tools. Keep the supplied controller system together unless an alternative combination is specifically confirmed. The product listing identifies TD-17 and TD-27 hi-hat support.
Standard Phantom silicone two-piece hi-hat
The standard Phantom 12-inch silicone hi-hat lists dual-zone bow/edge triggering, an included clutch and no internal connecting cable between its cymbals. That description does not mean the module connection is wireless. Check its own setup instructions and package contents rather than assuming the EVO controller and parts are interchangeable.
Phantom Graphite EVO
The Graphite EVO 12-inch hi-hat is a related finish and model to compare. Before ordering, confirm the exact TD-17 or TD-27 controller arrangement and recommended setup; a broad series compatibility statement is not a wiring diagram.
Before ordering and during setup
- Identify your exact module and current hi-hat/controller, including whether the TD-27 uses a digital hi-hat.
- Check stand requirements, clutch fit and which controller and cables are included.
- Connect trigger and controller functions to their specified destinations. Do not treat a spare crash connection as hi-hat control.
- Use the correct model-specific offset/calibration procedure. A Roland VH-10 or VH-14D routine should not automatically be applied to a different controller.
- Test bow and edge, closed and open strokes, intermediate positions, foot chicks and splashes. Change one setting at a time if response is uneven.
Frequently asked questions
Can I keep my old controller and replace only the top cymbal?
Only if that exact combination is confirmed. Matching plug sizes or cymbal diameters does not establish controller compatibility.
Does a two-piece design guarantee continuous open/close response?
No. The controller, module support and calibration determine the available response.
Does “VH-12 alternative” mean the TD-17 supports a Roland VH-12?
No. Product comparisons are not module compatibility lists. Roland’s TD-17 reference identifies the VH-10 and VH-11.
Choose with your module in mind
Browse electronic cymbals and hi-hats or ask World Drummers to confirm the controller and setup for your exact module before purchase.
Upgrading crashes or rides too? Compare the connection requirements in our TD-17 electronic cymbal guide or TD-27 electronic cymbal guide.
